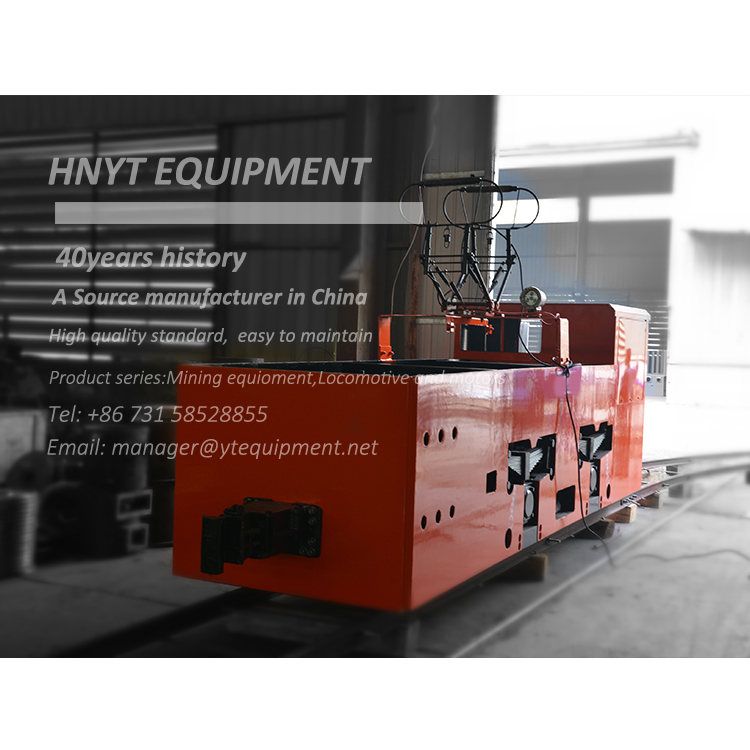

14 Ton Electric Mining Trolley Locomotive

We could provide huge tonne trolley locomotive with competitive price. Our factory has specialized in mining locomotive for many years, got good feedback from South America and Europe. We are expecting to become your long-term partner in China.

CJY10 Ton Underground Mining Trolley Locomotive

This 14 Ton Electric Mining Trolley Locomotive could adopt 2 driver cab, which could have a more a broad operating vision and running more safer.

This locomotive is usually running in middle or big mines without gas explosion.

The voltage could be 250 V or 550 V based on the customer's requirement.



14ton Trolley Locomomtive

Model

CJY14/6、7、9G(B)(P)

Adhesive / total weight (t)

14t

Track gauge (mm)

600、762 or 900mm

Traction

26.68kN

Max. Traction (KN)

34.3kN

Speed

12.87km/h

Direct Voltage

250V

550V

motor power

52kW×2

Dimensions

Length

4800mm

Width

1060、1222 or 1360mm

Height

1700mm

Wheel Base

1700mm

Wheel Diameter

Φ760mm

Operational height of current-controller

2000~3200mm

Min Curve radius (m)

12m

Controller

Resistance or IGBT

Braking method

Air Mechanical Brake


Running Video



Shipment and one site details
